Genesis YPbPr Component Cable

Our Genesis YPbPr Component Cable will make every game from Altered Beast to Zero Wing look like you've never seen it before. A standard composite Sega Genesis cable results in blurry text, color smearing, and the loss of some of the original detail. But HD Retrovision YPbPr cables provide a clean, white balanced image that is crisp and clear. Use them on an HDTV that supports 240p, or on a standard-definition CRT for that classic look.

The Genesis YPbPr cable has a Model 2 style plug, compatible with later editions of the Genesis. We also offer an adapter that converts this plug to work on the Model 1 Genesis and Master System. The following charts contains a list of tested and confirmed console models which work with the Genesis YPbPr cable and Model 1 adapter. We expect the cable to work with even more models and console types, but we are unable to explicitly list them here unless they are confirmed by us. The Genesis cable also includes a stereo upgrade jack to simplify audio connectivity. Using a male-to-male 3.5mm audio cable, it is simple to upgrade your standalone Model 1 Genesis or combination 32X/Sega CD unit to stereo audio.

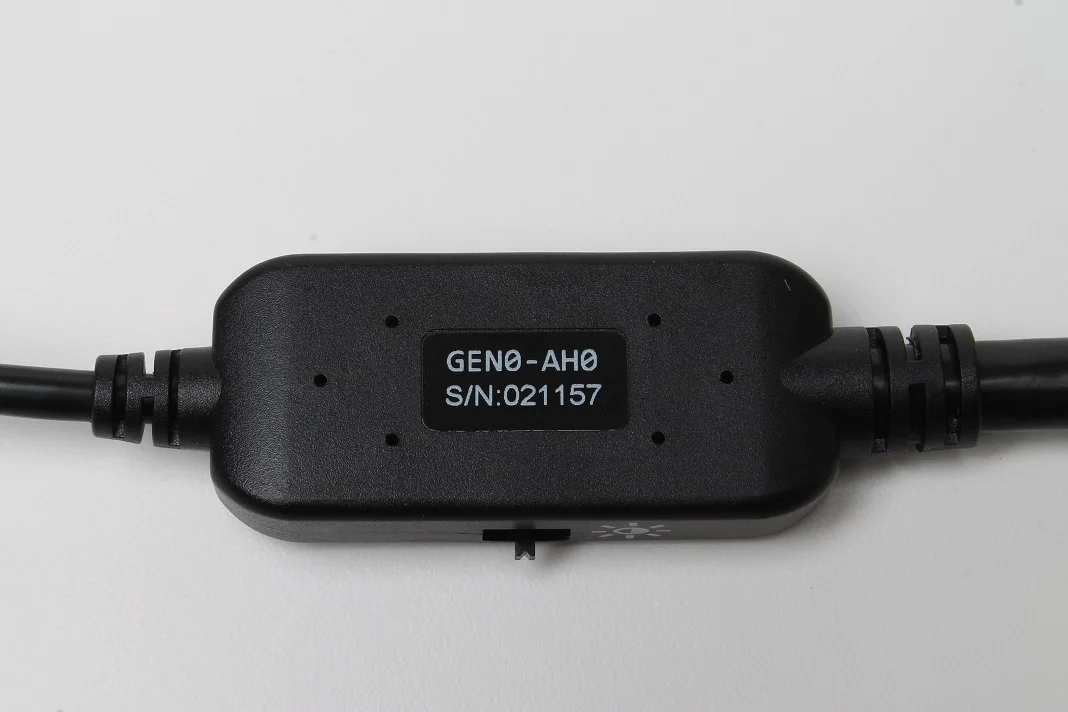

[For details on changes made in the newest Genesis cable revision, please see the GEN0-AH0 Changelog]

Genesis YPbPr Cable Verified Compatibility List (includes all internal revisions of models listed)
Model Name Region
MK-1631 Sega Genesis 2 NTSC - North America
HAA-2502 Sega Mega Drive 2 NTSC - Japan
MK-1631-50 Sega Mega Drive 2 (Europe) PAL - Europe
MK-1461 Sega Genesis 3 (mono audio only) NTSC - North America
MK-6100 Sega Nomad NTSC - North America
MK-84000A Sega 32X NTSC - North America
MK-4121 Sega CDX NTSC - North America
RG-M10BU JVC X'Eye (models with mini-DIN A/V port) NTSC - North America
HES-TGX-01 NEC TurboGrafx-16 with a dbGrafx Booster TTP NTSC - North America
PI-TG001 NEC PC Engine with a dbGrafx Booster TTP NTSC - Japan
PI-TG3 NEC CoreGrafx with a dbGrafx Booster TTP NTSC - Japan

Model 2 to Model 1 Adapter Verified Compatibility List (includes all internal revisions of models listed)
Model Name Region
1601 Sega Genesis 1 NTSC - North America
HAA-2510 Sega Mega Drive 1 NTSC - Japan
1600-05 Sega Mega Drive 1 PAL - UK
3000 Sega Master System NTSC - North America
3010 Sega Master System NTSC - North America
3010-(A,B,C) Sega Master System NTSC - North America
3005-05-A Sega Master System PAL - UK
MK-2000 Sega Master System NTSC - Japan

Genesis YPbPr Cable Verified Incompatibility List
Simple workarounds exist, so please contact us for assistance with these consoles.
Model Name Region
1600-09 Sega Mega Drive 1 PAL/SECAM - France
1601-09 Sega Mega Drive 1 PAL/SECAM - France
3005-09-A Sega Master System PAL/SECAM - France
3005-26-A Sega Master System PAL/SECAM - Switzerland
3006-09 Sega Master System II PAL/SECAM - France

NOTE: Our YPbPr component cables only output Standard-Definition video. No High-Definition signals are directly available through our cables.  See our FAQ for more details.

Genesis YPbPr Component Cable

Genesis YPbPr Component Cable

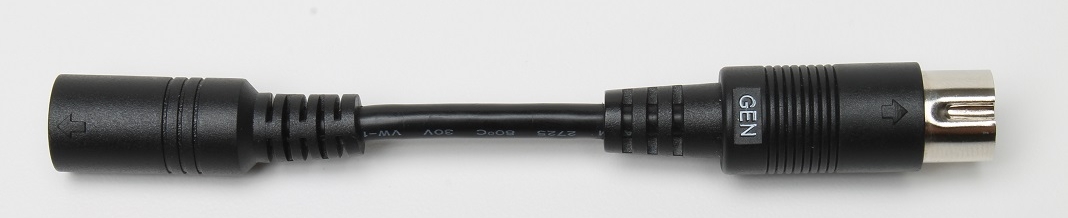

Model 2 to Model 1 Genesis Adapter
